Moondrop Rays — Hybrid Gaming IEM with USB-C DSP

The Moondrop Rays is a wired in-ear monitor built for gaming, part of the MOONDROP Gravity Pro Gaming series. It combines Moondrop's Hi-Fi acoustic tuning with a Hi-Fi class game sound card on a USB-C cable, so it connects directly to a computer or phone with a USB-C port, while the included USB-C to USB-A extension cable covers computers with USB-A ports. The result is a single IEM for competitive play, voice chat and music.

What Sets the Rays Apart

The driver configuration pairs a 10 mm sapphire-plated diaphragm dynamic driver with a 6 mm annular planar magnetic driver. Moondrop tuned it for both Hi-Fi listening and gaming, aligned with its VDSF target response and with ultra-low nonlinear distortion across the full signal chain, aiming for clearer imaging, more accurate positioning and a richer spatial presentation. The cavity is ergonomically designed and 3D-printed from medical-grade material.

Tuning Software and Microphone

Sound is shaped with visual multi-point parametric tuning in the MOONDROP Link app or in the MOONDROP online equalizer. One-click EQ and one-button switching between profiles make quick changes easy, and a built-in community lets users share and download tunes, including tunes fine-tuned with e-sports players. The built-in DSP stores the tuning in memory. For communication, the microphone uses hardware-level AI noise cancellation with an embedded NPU.

• Driver: 10 mm sapphire-plated diaphragm dynamic driver + 6 mm annular planar magnetic driver
• Impedance: 30 Ω ±15% (@1 kHz)
• Sensitivity: 120 dB/Vrms (@1 kHz)
• Frequency Response: 7 Hz – 39 kHz, effective 20 Hz – 20 kHz (IEC60318-4, -3 dB)
• THD: ≤0.05% (@1 kHz)
• Connection: 0.78 mm 2-pin earphone connector, USB-C cable plug

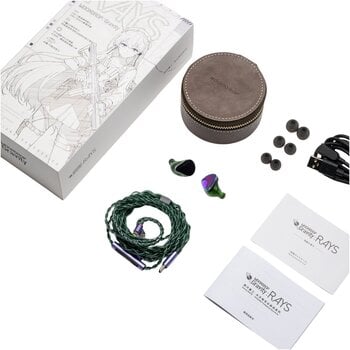

• In the Box: cable, USB-C to USB-A extension cable, storage bag, 3 pairs of ear tips

Who the Moondrop Rays Is For

The Rays is the right choice for gamers who want accurate sound positioning and clear voice chat from a compact in-ear monitor instead of a bulky headset. The DSP tuning with game-oriented presets makes it easy to switch between titles, while the Hi-Fi tuning and hybrid dynamic plus planar driver setup make it equally suitable for music between sessions.
